Conveyor
Product Description
Conveyor

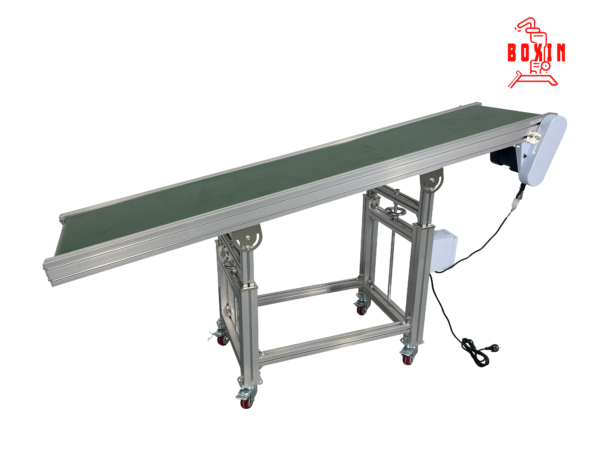

This aluminum alloy belt conveyor features a lightweight and compact structure, making it ideal for industrial automation environments. The belt speed is fully adjustable through external signals, such as manipulators or robotic arms, enabling precise control for intermittent or continuous operation.
Its flat belt surface maximizes the usable working area, supporting stable and efficient product transfer. With built-in hand wheels, the conveyor allows for height adjustment at both ends:
- Higher end: 1100–1400 mm
- Lower end: 800–1000 mm
The unit comes equipped with four casters for easy mobility and four foldable fixed feet for stable positioning during operation and space-saving storage when not in use.
Key Features Of Conveyor
- Lightweight aluminum alloy structure
- Speed adjustable via external signals
- Flat surface for full workspace utilization
- Height adjustable at both ends
- Mobile design with casters and foldable feet
Related Solutions
Explore more in our automation accessories or robot integration solutions. Need customization? Contact us today.
Main Specifications
| Model | YBCNA/CNB200W | YBCNA/CNB300W | YBCNA/CNB400W | YBCNA/CNB500W | YBCNA/CNB600W |
| Width of belt (mm) | 200 | 300 | 400 | 500 | 600 |
| Length of Converyor (mm) | 1500/2000/2500/3000/3500/4000/4500/5000/5500/6000 | ||||
| Height of lower end (mm) | 800-1000 | ||||
| Height of higher end (mm) | 1100-1400 | ||||
| Plance | 300(only for BNB-) | 500(only for BNB-) | 700(only for BNB-) | ||
| Max.Loading (KG) | Average 15 | ||||
| Max.Speed (m/min) | 10 | ||||
| Belt Desacription | PVC/2mmThickness/Color: Green/Temperature resistance:-10℃-＋80℃/Anti-static, wear-resistant, oil-resistant | ||||
| Power Sourece | Single Phase AC 220V ± 10V 50/60HZ | ||||
| Power Capactty | 0.2 | ||||
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
