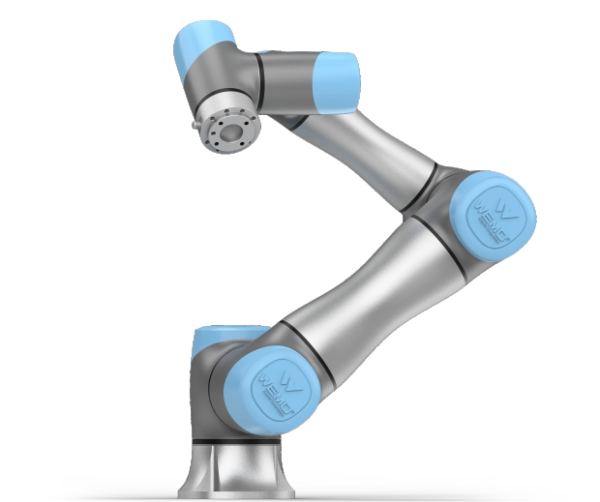

WEC-E7M Cobot
Product Description
WEC-E7M Cobot
Security is the primary factor in man-machine collaboration, and a safety mechanism that does not compromise efficiency is the optimal solution.
Unlike traditional safety devices, the industry’s only mass-produced SafeSkin safety skin enables non-contact monitoring and collision avoidance, allowing collaborative robots to operate at a speed of 1m/s, which is up to 4 times faster than international standards, without needing to slow down for collision prevention. This ensures both efficiency and safety.
The WEC series is designed to be efficient, flexible, and easy to use. With the addition of SafeSkin, the Cobot helps you achieve a more productive and collaborative man-machine workflow.
Key Features Of WEC-E7M Cobot
-
360° Omnidirectional perception
-
10ms Fast response
-
4 times Work efficiency
- 7kg load, 800mm reach
Safety requirements for collaborative industrial robot systems and their working environments
https://www.iso.org/standard/62996.html
WEC Series Cobot
WEM Cobot Series 归档 – QUZHOU BOXIN TECHNOLOGY
Main Specifications
Weight: 24.5kg
Maximum load: 7kg
Working radius: 800mm
Maximum linear speed: 2m/s
Joint range of motion: J3:±160° (other joints ±360°)
Maximum joint speed: J1/J2(180°/S)J3: (223°/S) J4/J5: (223°/S)
Terminal IO: DI(2 channels) /DO (2 channels) /AI (2 channels multiplexed with RS485)
Repeated accurate positioning: ±0.02mm
IP level: ±Ip45
Temperature range: 0~50°C
Typical power consumption: 150W
Installation method: any Angle
Length of cable between the body and the electrical cabinet: 5m
Material: Aluminum alloy, ABS plastic
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
