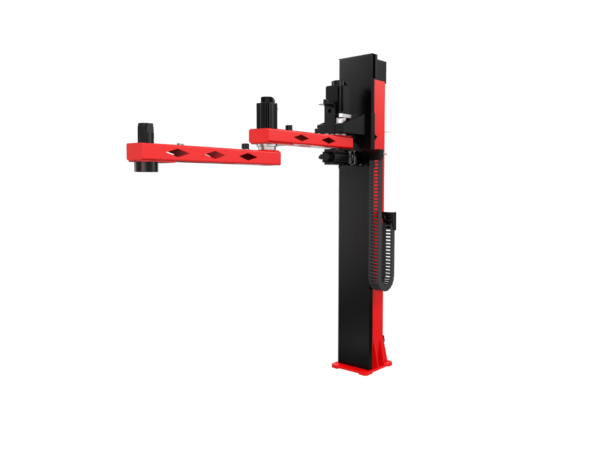

BRTIRPZ2080A Four-axis Palletizing Robot

The BRTIRPZ2080A is a Four-Axis Column Palletizing Robot developed by Borunte Robot Co., Ltd. This advanced robot is designed for monotonous, frequent, and repetitive long-term operations, as well as for tasks in dangerous and harsh environments. Suitable for loading and unloading, handling, depalletizing, stacking, etc.

Design Features

• 2000mm Arm Span: Provides a wide reach, suitable for large workspaces and various palletizing tasks.
• Maximum Load of 80kg: Capable of handling heavy loads efficiently.
• Standard Cycle Time: Achieves a standard cycle time of 5.2 seconds (with an 80kg load, traveling 400-2000-400mm), ensuring high-speed operation.
• Palletizing Speed: Can palletize at a rate of 300-500 times per hour, significantly increasing productivity.

Flexibility and Versatility

• Multiple Degrees of Freedom: The flexibility of the robot allows it to handle loading and unloading, handling, depalletizing, and palletizing tasks with ease.
• Compact Structure: Despite its large arm span and high load capacity, the robot maintains a compact and space-efficient design.

Protection and Precision

• High Protection Level: IP40: Ensures the robot can operate in environments with dust and splashing water, providing robust protection.
• High Precision: Repeated Positioning Accuracy ±0.15mm: Delivers consistent and accurate performance, crucial for maintaining high-quality standards.

Performance Benefits

• Enhanced Efficiency: The BRTIRPZ2080A is designed to perform repetitive tasks quickly and reliably, increasing overall production efficiency.
• Consistent Quality: High precision and repeated positioning accuracy ensure that products meet stringent quality requirements.
• Operator Safety: By automating tasks in dangerous and harsh environments, the robot helps create a safer work environment.
• Reduced Labor Costs: Automates labor-intensive processes, allowing factory personnel to focus on more value-added activities.
• Simple Maintenance: The integrated control system and robust design make maintenance straightforward and reduce downtime.

Control System

• Four-Axis Drive-Control Integrated System:
  • Fewer Signal Lines: Simplifies installation and maintenance.
  • Long-Distance Communication: Supports reliable operation in large-scale manufacturing environments.
  • Good Expansion Performance: Offers excellent adaptability to various production settings.
  • Strong Anti-Interference Ability: Ensures high accuracy and reliability in operation.

The BRTIRPZ2080A is a reliable and versatile solution for modern manufacturing needs. It promises long-term benefits in terms of efficiency, precision, and cost savings, making it an essential investment for any factory looking to optimize its palletizing and handling processes and ensure operator safety.

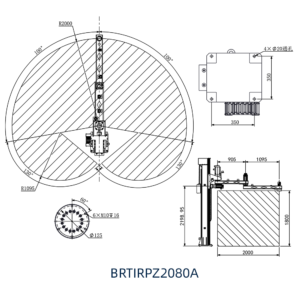

Main Specifications

Arm span (mm): 2000

Repeat positioning accuracy (mm): ±0.15

Maximum load (kg): 80

Power capacity (kVA): 6

Weight (kg): 615.5
