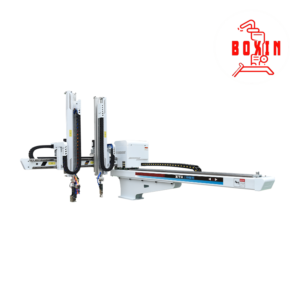

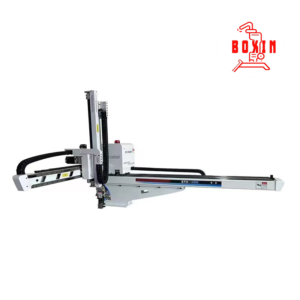

Single-section Double-arm Five-axis servo Manipulator

Five-Axis Servo Manipulator injection molding

Product Description

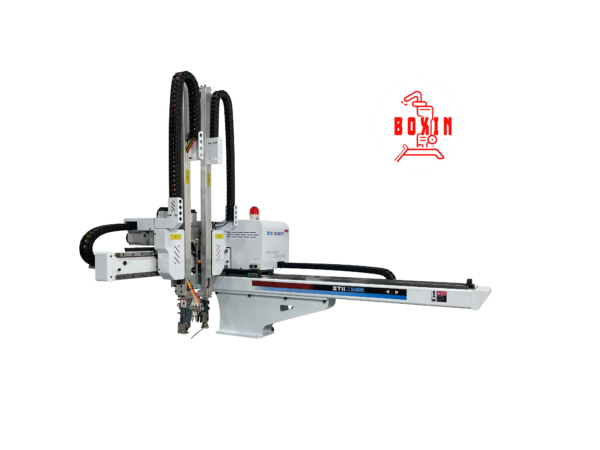

The Single-Section Double-Arm Five-Axis Servo Manipulator （robotic arm） is specifically designed for the finished product removal of various horizontal injection molding machines ranging from 90T to 280T. This advanced manipulator is a versatile and efficient solution for modern manufacturing environments.

Design Features

  • Single-Section Arm Type: Provides a compact and flexible design, ideal for a wide range of applications.
  • Double-Arm Configuration: Allows for simultaneous handling of multiple tasks, increasing productivity and efficiency.
  • Five-Axis AC Servo Drive: Ensures fast removal times and accurate positioning, making it suitable for quick removal, in-mold labeling, in-mold inserts, and other special product applications.

Performance Benefits

  • Fast Speed: High-speed operation reduces cycle times, enhancing overall production efficiency.
  • Accurate Positioning: The manipulator’s precision ensures consistent and reliable product handling.
  • Long Life: The robust design and high-quality components contribute to a longer operational life.
  • Low Failure Rate: Minimizes breakdowns and downtime, ensuring continuous and smooth production.

Production Enhancements

  • Increased Production Capacity: Installation of the manipulator can increase production capacity by 10-30%.
  • Reduced Product Defect Rate: Helps in maintaining high product quality by reducing defects.
  • Operator Safety: Ensures a safer work environment by automating repetitive and potentially hazardous tasks.
  • Labor Reduction: Automates labor-intensive tasks, allowing factory personnel to focus on more value-added activities.
  • Accurate Production Output Control: Enables precise control over production volume, reducing waste.
  • Timely Delivery: Ensures that products are delivered on time by optimizing the production process.

Control System

  • Five-Axis Drive-Control Integrated System: Features few signal lines, simplifying installation and maintenance.
  • Long-Distance Communication: Supports reliable operation even in large-scale manufacturing environments.
  • Good Expansion Performance: Offers excellent adaptability to various production settings.
  • Strong Anti-Interference Ability: Ensures high repeatability positioning accuracy and the ability to control multiple axes simultaneously.
  • High Repeatability Positioning Accuracy: Consistently achieves accurate positioning, enhancing reliability.
  • Simple Equipment Maintenance: Reduces maintenance time and costs, contributing to lower failure rates.

Reliability and Support

  • Two-Year Warranty: Provides comprehensive coverage for two years, offering peace of mind.
  • OEM Support: Offers customization options to meet specific factory requirements.

The Single-Section Double-Arm Five-Axis Servo Manipulator is a reliable and versatile solution for modern manufacturing needs. It promises long-term benefits in terms of efficiency, reliability, and cost savings, making it an essential investment for any factory looking to optimize its horizontal injection molding processes.

Introduction to Injection Molding Manipulators Manufactured in China

Main Specifications

Model

 Power Source(kVA) Recommended I.M.M (ton) Traverser Driven Model of EOAT Traverse Stroke (mm) Crosswise Stroke (mm) Vertical Stroke (mm) Max.Loading (kg) Dry Take Out Time (sec) Dry Cycle Time(sec) Air Consumption (NI/cycle) Weight (kg)

S5-700ID

 3

60T-120T





AC Servo motor



Two suctions

Two fixtures



1230



770



700







5



1.3



6.7



 4



250
S5-800ID

120T-160T



800



1.4



6.8
S5-900ID 3.5 200-280T

1390



890



900



1.5



7.1

270

Model representation :I: Single section type W: Telescopic type S: Single arm D: Product arm+ runner arm. S3: Three-axis driven by AC Servo Motor S5: Five-axis driven by AC Servo Motor (Traverse-axis、Vertical-axis + Crosswise-axis)

The above-mentioned cycle time are the results of our company’s internal test standard. In the actual application process of the machine, they will vary according to the actual operation.



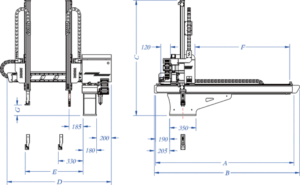

Model A B C D E F G
700 1840 1940 1460 1390 770 1230

130(32)
800 1580
900 2000 2100 1700 1510 890 1390

No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
