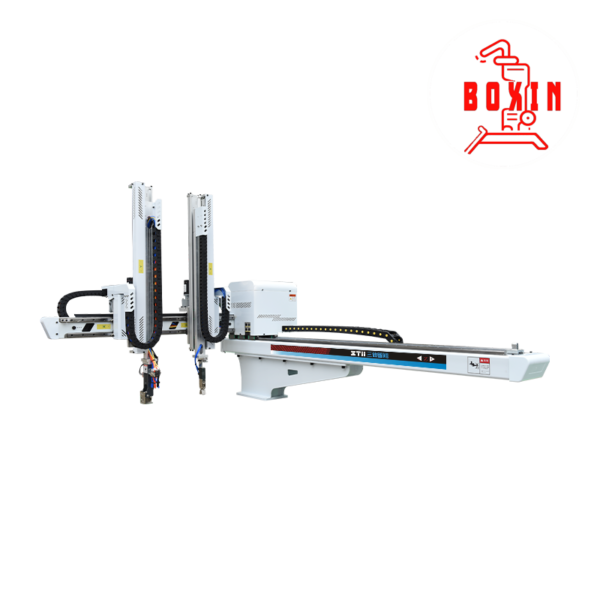

Double-section Double-arm Five-axis servo Manipulator

robotic arm plastic injection

Product Description

The Double-Section Double-Arm Five-Axis Servo Manipulator (robotic arm) is designed for use with various plastic injection molding machines ranging from 60T to 600T. This advanced manipulator is a powerful tool for enhancing production efficiency and quality in modern manufacturing environments.

Design Features

  • Double-Section Arm: Provides enhanced flexibility and reach, making it suitable for a wide range of applications.
  • Double-Arm Configuration: Allows for simultaneous handling of multiple tasks, increasing productivity and efficiency.
  • Five-Axis AC Servo Drive: Ensures fast picking times and accurate positioning, making it more time-saving compared to similar models.

Performance Benefits

  • Fast Speed: High-speed operation reduces cycle times, enhancing overall production efficiency.
  • Accurate Positioning: The manipulator’s precision ensures consistent and reliable product handling.
  • Long Life: The robust design and high-quality components contribute to a longer operational life.
  • Low Failure Rate: Minimizes breakdowns and downtime, ensuring continuous and smooth production.

Production Enhancements

  • Increased Production Capacity: Installation of the manipulator can increase production capacity by 10-30%.
  • Reduced Product Defect Rate: Helps in maintaining high product quality by reducing defects.
  • Operator Safety: Ensures a safer work environment by automating repetitive and potentially hazardous tasks.
  • Labor Reduction: Automates labor-intensive tasks, allowing factory personnel to focus on more value-added activities.
  • Accurate Production Volume Control: Enables precise control over production volume, reducing waste.
  • Timely Delivery: Ensures that products are delivered on time by optimizing the production process.

Control System

  • Three-Axis Drive Integrated Control System: Features fewer signal lines, simplifying installation and maintenance.
  • Long-Distance Communication: Supports reliable operation even in large-scale manufacturing environments.
  • Good Expansion Performance: Offers excellent adaptability to various production settings.
  • Strong Anti-Interference Ability: Ensures high repeatability and the ability to control multiple axes simultaneously.
  • High Repeatability: Consistently achieves accurate positioning, enhancing reliability.
  • Simple Equipment Maintenance: Reduces maintenance time and costs, contributing to lower failure rates.

Reliability and Support

  • Two-Year Warranty: Provides comprehensive coverage for two years, offering peace of mind.
  • OEM Support: Offers customization options to meet specific factory requirements.

The Double-Section Double-Arm Five-Axis Servo Manipulator is a reliable and versatile solution for modern manufacturing needs. It promises long-term benefits in terms of efficiency, reliability, and cost savings, making it an essential investment for any factory looking to optimize its plastic injection molding processes.

Introduction to Injection Molding Manipulators Manufactured in China

Main Specifications

Model

 Power Source(kVA) Recommended I.M.M (ton) Traverser Driven Model of EOAT Traverse Stroke (mm) Crosswise Stroke (mm) Vertical Stroke (mm) Max.Loading (kg) Dry Take Out Time (sec) Dry Cycle Time(sec) Air Consumption (NI/cycle) Weight (kg)

S5-700WD



3

 60T-120T AC Servo motor Two suctions

Two fixtures

 1290 740 700





5

 1.3 6.7 4

270

S5-800WD

120T-160T

800

1.4

6.8

S5-900WD

3.5

200T-280T

 1450 860 900 1.5 7.1

280
S5-1000WD 3.6

200T-300T

1000



8

1.6

7.2

5

S5-1100WD



3.5

 300T-400T 1650 980 1100 1.7 7.6

300
S5-1200WD

400T-500T

1200

1.9

7.7
S5-1300WD 3.6 500T-600T 1750 1300 10 2.1 7.8 6

310

Model representation :I: Single section type W: Telescopic type S: Single arm D: Product arm+ runner arm. S3: Three-axis driven by AC Servo Motor S5: Five-axis driven by AC Servo Motor (Traverse-axis、Vertical-axis + Crosswise-axis)

The above-mentioned cycle time are the results of our company’s internal test standard. In the actual application process of the machine, they will vary according to the actual operation.

Model A B C D E F G
700 1840 1940 1110 1390 400 1280 100(32)
800 1170
900 2000 2100 1230 1510 520 1450
1000 1290
1100 2200 2300 1350 1630 640 1650 70(40)
1200 1410
1300 2300 2400 1470 1750

No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
