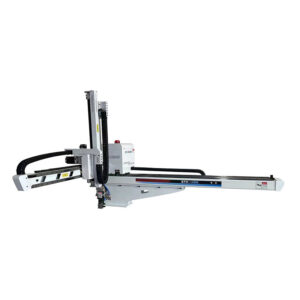

BRTR13WDS5PC/FC Five-axis servo Manipulator

The BRTR13WDS5PC/FC Five-axis servo Manipulator is a high-performance manipulator designed by Borunte for all types of horizontal injection molding machines ranging from 360T to 700T. This advanced device is specifically tailored for the take-out of products and sprue, and it is also suitable for in-mold labeling and in-mold inserting applications.

Design Features

• Vertical Arm with Telescopic Stage: The vertical arm is equipped with a telescopic stage, providing enhanced flexibility and reach.
• Product Arm: Designed to handle a variety of products and sprue efficiently.
• Five-Axis AC Servo Drive: Ensures fast and accurate movement, making it ideal for rapid and precise product handling.

Performance Benefits

• Fast Speed: The five-axis AC servo drive allows for quick take-out and in-mold operations, reducing cycle times.
• Accurate Positioning: High precision in movement ensures consistent and reliable product handling.
• Long Life: The robust design and high-quality components contribute to a longer operational life.
• Low Failure Rate: Minimizes breakdowns and downtime, ensuring continuous and smooth production.

Production Enhancements

• Increased Productivity: Installation of the BRTR13WDS5PC/FC can increase production capacity by 10-30%.
• Reduced Defective Rate: Helps in maintaining high product quality by reducing defects.
• Operator Safety: Ensures a safer work environment by automating repetitive and potentially hazardous tasks.
• Manpower Reduction: Automates labor-intensive tasks, allowing factory personnel to focus on more value-added activities.
• Accurate Output Control: Enables precise control over production volume, reducing waste.
• Timely Delivery: Optimizes the production process to ensure products are delivered on time.

Control System

• Five-Axis Driver and Controller Integrated System:
  • Fewer Signal Lines: Simplifies installation and maintenance.
  • Long-Distance Communication: Supports reliable operation in large-scale manufacturing environments.
  • Good Expansion Performance: Offers excellent adaptability to various production settings.
  • Strong Anti-Interference Ability: Ensures high accuracy of repeated positioning and the ability to control multiple axes simultaneously.
  • High Accuracy of Repeated Positioning: Consistently achieves accurate positioning, enhancing reliability.
  • Simple Equipment Maintenance: Reduces maintenance time and costs, contributing to lower failure rates.

Reliability and Support

• ONE-Year Warranty: Provides comprehensive coverage for two years, offering peace of mind.

The BRTR13WDS5PC/FC is a reliable and versatile solution for modern manufacturing needs. It promises long-term benefits in terms of efficiency, reliability, and cost savings, making it an essential investment for any factory looking to optimize its horizontal injection molding processes.

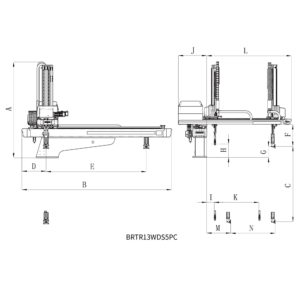

Main Specifications

Power Source (kVA)	Recommended I.M.M (ton)	Traverser Driven	Model of EOAT
3.76	360T-700T	AC Servo motor	Four suctions Two fixtures

Traverse Stroke (mm)	Crosswise Stroke (mm)	Vertical Stroke (mm)	Max.Loading (kg)
1800	P:800-R:800	1350	10

Dry Take Out Time (sec)	Dry Cycle Time (sec)	Air Consumption (NI/cycle)	Weight (kg)
2.08	7.80	6.8	450

Model representation: W:Telescopic type D:Product arm +runner arm. S5:Five-axis driven by AC Servo Motor(Traverse-axis、Vertical-axis+Crosswise-axis).

The above-mentioned cycle time are the results of our company’s internal test standard. In the actual application process of the machine, they will vary according to the actual operation.
